PART NO 2015-2018 |

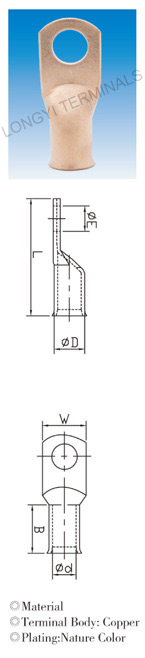

ITEM NO | DIMENSIONS | |||||
| φE | ΦD | Φd | W | B | L | |||
| LY0014-0001 | 8#10 | 5.1 | 7.1 | 4.8 | 11.8 | 13.0 | 33.3 | |
| LY0014-0002 | 8*1/4 | 6.8 | 7.1 | 4.8 | 11.8 | 13.0 | 33.3 | |
| LY0014-0003 | 8*5/16 | 8.3 | 7.1 | 4.8 | 11.8 | 13.0 | 33.3 | |
| LY0014-0004 | 8*3/8 | 10.4 | 7.1 | 4.8 | 14.5 | 13.0 | 33.3 | |
| LY0014-0005 | 8*1/2 | 13.1 | 7.1 | 4.8 | 17 | 13.0 | 33.3 | |
| LY0014-0006 | 6#10 | 5.1 | 8.1 | 5.9 | 11.8 | 15.0 | 37.3 | |
| LY0014-0007 | 6*1/4 | 6.8 | 8.1 | 5.9 | 13.7 | 15.0 | 37.3 | |
| LY0014-0008 | 6*5/16 | 8.3 | 8.1 | 5.9 | 13.7 | 15.0 | 37.3 | |
| LY0014-0009 | 6*3/8 | 10.4 | 8.1 | 5.9 | 13.7 | 15.0 | 37.3 | |
| LY0014-0010 | 6*1/2 | 13.1 | 8.1 | 5.9 | 17 | 14.0 | 37.3 | |
| LY0014-0011 | 4*1/4 | 6.8 | 9.5 | 7.3 | 13.8 | 15.5 | 38.9 | |
| LY0014-0012 | 4*5/16 | 8.3 | 9.5 | 7.3 | 13.8 | 15.5 | 38.9 | |
| LY0014-0013 | 4*3/8 | 10.4 | 9.5 | 7.3 | 14.5 | 15.5 | 38.9 | |
| LY0014-0014 | 4*1/2 | 13.1 | 9.5 | 7.3 | 17 | 15.0 | 38.9 | |
| LY0014-0015 | 2*1/4 | 6.8 | 11.1 | 8.5 | 16.5 | 16.0 | 41.1 | |
| LY0014-0016 | 2*5/16 | 8.3 | 11.1 | 8.5 | 16.5 | 16.0 | 41.1 | |
| LY0014-0017 | 2*3/8 | 10.4 | 11.1 | 8.5 | 16.5 | 16.0 | 41.1 | |
| LY0014-0018 | 2*1/2 | 13.1 | 11.1 | 8.5 | 17 | 15.3 | 41.1 | |
| LY0014-0019 | 1*1/4 | 6.8 | 11.7 | 9.1 | 16.4 | 16.0 | 43.6 | |
| LY0014-0020 | 1*5/16 | 8.3 | 11.7 | 9.1 | 16.4 | 16.0 | 43.6 | |
| LY0014-0021 | 1*3/8 | 10.4 | 11.7 | 9.1 | 17.1 | 16.0 | 43.6 | |
| LY0014-0022 | 1*1/2 | 13.1 | 11.7 | 9.1 | 19.1 | 16.0 | 43.6 | |
| LY0014-0023 | 1/01/4 | 6.8 | 13 | 10.4 | 18.4 | 19.0 | 46.8 | |
| LY0014-0024 | 1/05/16 | 8.3 | 13 | 10.4 | 18.4 | 19.0 | 46.8 | |
| LY0014-0025 | 1/03/8 | 10.4 | 13 | 10.4 | 18.4 | 19.0 | 46.8 | |
| LY0014-0026 | 1/01/2 | 13.1 | 13 | 10.4 | 21 | 19.0 | 46.8 | |
| LY0014-0027 | 2/01/4 | 6.8 | 14.2 | 11.7 | 21 | 22.0 | 52.4 | |
| LY0014-0028 | 2/05/16 | 8.3 | 14.2 | 11.7 | 21 | 22.0 | 52.4 | |
| LY0014-0029 | 2/03/8 | 10.4 | 14.2 | 11.7 | 21 | 22.0 | 52.4 | |
| LY0014-0030 | 2/01/2 | 13.1 | 14.2 | 11.7 | 21 | 21.0 | 52.4 | |
| LY0014-0031 | 3/05/16 | 8.3 | 15.7 | 13 | 23.1 | 22.5 | 55.9 | |
| LY0014-0032 | 3/03/8 | 10.4 | 15.7 | 13 | 23.1 | 22.5 | 55.9 | |
| LY0014-0033 | 3/01/2 | 13.1 | 15.7 | 13 | 23.1 | 22.5 | 55.9 | |
| LY0014-0034 | 4/05/16 | 8.3 | 17.2 | 14.2 | 25.8 | 24.0 | 60.5 | |
| LY0014-0035 | 4/03/8 | 10.4 | 17.2 | 14.2 | 25.8 | 24.0 | 60.5 | |
| LY0014-0036 | 4/01/2 | 13.1 | 17.2 | 14.2 | 25.8 | 24.0 | 60.5 | |
